1.0L Diesel 3 Cylinder 1048cc UTV Utility Vehicles Electric Start

Brand Name : RONGYAO

Model Number : Gas Utility Vehicle450CC02

Certification : EC,EEC,DOT,EPA

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, Western Union,

Supply Ability : 1000 pcs/month

Delivery Time : Within 20 Days

Packaging Details : Metal Frame with Carton

Product name : 1000cc four wheel utility vehicle

Engine type : 1000cc

Starter : Electric start

Engine Type : 3-Cylinder, water & oil cooled, 4-stroke, swirl combustor

Fuel Consumption : On Road: 6 L / 100km Off Road: 10 L/100km

Brakes Front : Four wheel independent hydraulic brake system Front and rear hydraulic ventilated disk brakes with vacume assisted power booster Stainless steel braided brake lines

Contact Now

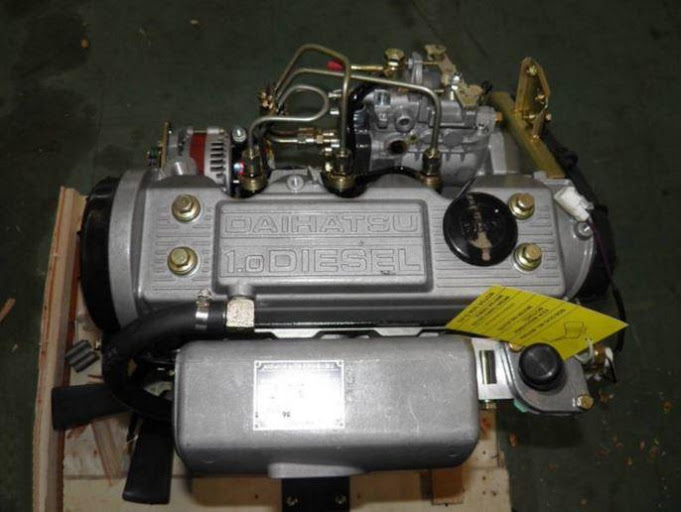

Powerful 3 cylinder 1048cc water and oil cooled genuine Japanese Daihatsu diesel engine UTV





Model: China UTV450cc02

Approve mode:EEC EPA DOT
Product Description:
Engine Make Daihatsu 1.0L Diesel
Engine Type 3-Cylinder, water & oil cooled, 4-stroke, swirl combustor
Displacement 1.048L
Horsepower Rated Power: 17.5kw/3600 r/min; 23.6 hp.
Fuel Capacity Diesel 29L
Transmission CVT continuous variable transmission
Transmission l+h+n+r automatic v-belt CVT with reverse
Front and rear shaft drive with grease points
Selectable 2WD / 4WD
Electronic controlled front and rear diff locks
l + h 2wd & 4wd
Push button 2 way locking system with lockable front diff.
Top Speed In high gear range: 50 km/h
In low gear range: 28 km/h
Wheels, Drive System 2WD/4WD switch, Shaft drive, Electric controlled diff locks.
Engine starting Electric start
Gear Selection CVT-R N L H
Front / Rear Brake Four wheel independent hydraulic brake system
Front and rear hydraulic ventilated disk brakes with vacume assisted power booster
Stainless steel braided brake lines
Braking Distance Less than 7M at 30km/h
Chassis Thick solid steel C channel very well welded and balanced frame with multiple roll over protection bars
Steering Rack and Pinion
Suspension Front: Independent A-Arms with Mac-Pherson struts
Rear: Independent dual A- arms with solid heavy duty coil over suspension
Dimensions L x W x H = 3160mm×1550mm ×1950mm
Front Tread Centers 1230mm
Rear Tread Centers 1330mm
Wheelbase 2095mm
Ground Clearance 300mm
Turning Radius 5 M
Towing Capacity 800 kg
Cargo Bed Load Capacity 400 kg
Fuel Consumption On Road: 6 L / 100km
Off Road: 10 L/100km
Weight ( unloaded ) 765kg (1686 lbs)
Steel Tray Dimensions Width x Length x Height: 1435mm x 1250mm x 340mm
Steel Tray Load Capacity 400 kg
Sound Level, at Operator’s Ear db.( A) 82 db
Wheels and Tyres Front: Four stud alloy wheels, All Terrain tyres 25×8-12 : 6 ply
Rear: Four stud alloy wheels, All Terrain tyres 25×10-12 : 6 ply
Person Dual seating (2 Persons)







Applications:



For adult use only/ Forest road/ Riverbed/Stream,

Mountain Road/ On the Beach/ Farm and Pleasure Ground






Terms of transaction:

Our warranty is 1 years. If your vehicle is broken,the spare parts will be sent to you free of charge.

This vehicle will be sent to you assembled by sea and you can ride as soon as getting it.

The terms of payment is wire transfer,western union or .

The delivery time is about 20 days.
